Supply high water temperature up to 75℃

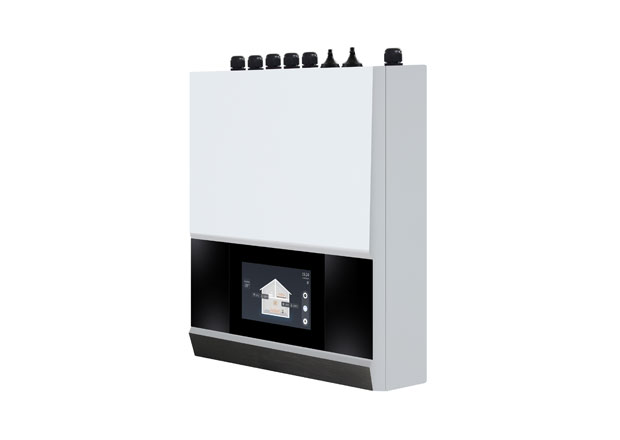

Easy wiring with a controller box
With WIFI module and APP control
Natural and ecological refrigerant R290 with low GWP of 3
High energy efficiency and reaches A+++ energy level
If you want to know more about R290 vs r32 heat pump and other wholesale info, please do not hesitate to contact Amitime heat pump supplier.

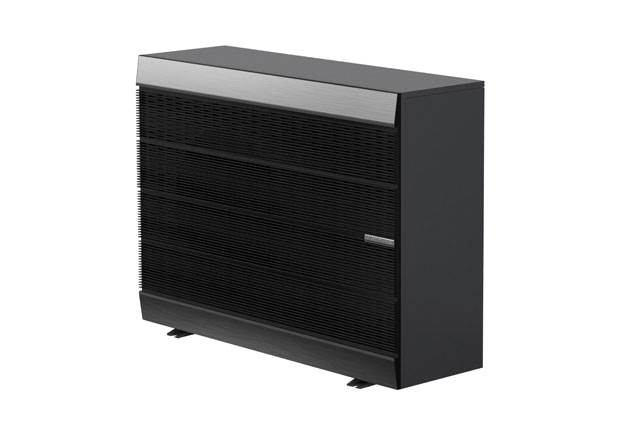

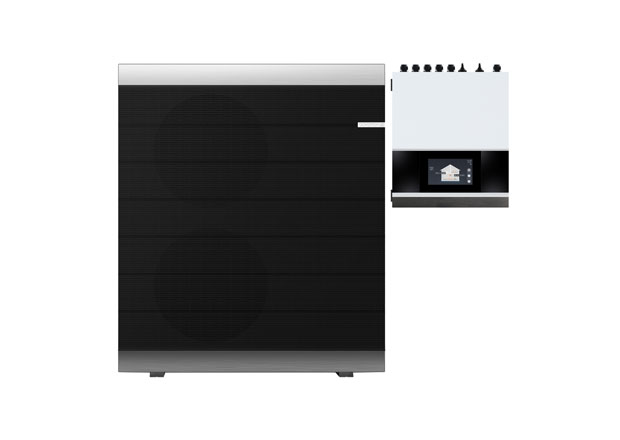

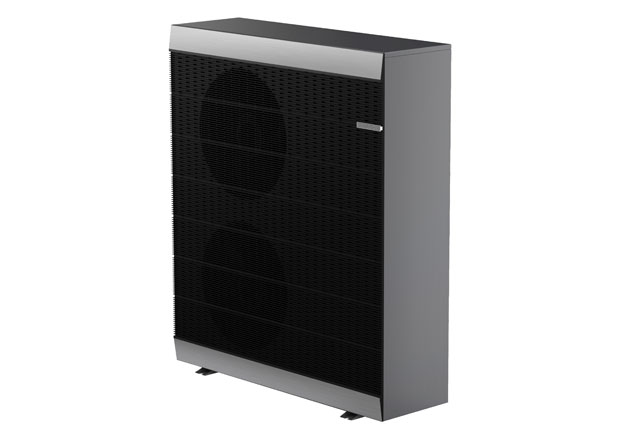

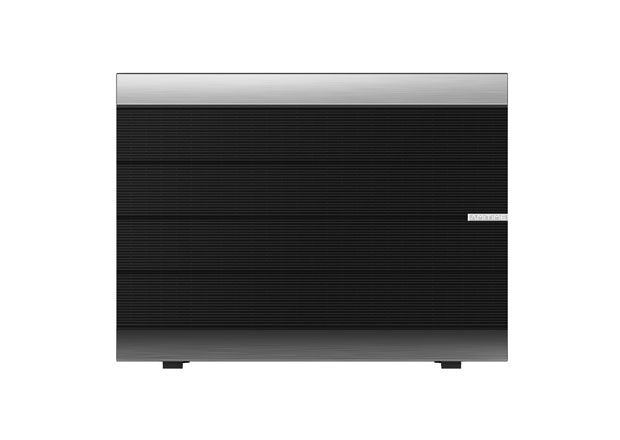

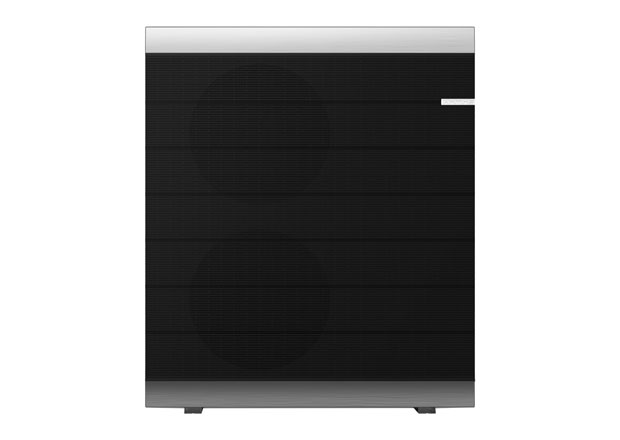

Full Monoblock type with controller box for easy installation and control
Low noise solution with DC fan motor and improved air duct system
Environmental friendly with low GWP of 3
| EcoSTAR Series-CB | |||||||
| Model | EcoSTAR06M-CB | EcoSTAR08M-CB | EcoSTAR12M-CB | EcoSTAR15M-CB | |||
| Seasonal Energy-(According to EN14825) | |||||||
| ErP | Energy class - Heating (35°C/55°C) | - | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | |
| SCOP(35°C/55°C) | W/W | 4.81/3.59 | 4.85/3.65 | 4.76/3.56 | 4.74/3.50 | ||
| Rated Heat Output(Prated) (35°C/55°C) | kW | 4.91/4.55 | 6.93/6.40 | 8.97/8.21 | 12.55/11.01 | ||
| Seasonal Space Heating Efficiency (ηs) (35°C/55°C) | % | 189.3/140.6 | 190.9/143.1 | 187.5/139.4 | 186.5/136.9 | ||
| Annual Energy Consumption(35°C/55°C) | kWh | 2111/2616 | 2953/3622 | 3889/4766 | 5475/6505 | ||
| Sound power level (indoor/outdoor) | dB(A) | 33/54 | 33/54 | 34/56 | 37/56 | ||
| Nominal Capacity and Nominal Input | |||||||
| Nominal heating | Heating Capacity Min./Max | A7/W35 | kW | 2.56/6.76 | 3.76/9.52 | 5.21/12.0 | 6.83/16.6 |
| Heating Power Input Min./Max. | kW | 0.58/1.52 | 0.68/2.04 | 0.99/3.06 | 1.27/4.18 | ||
| C.O.P | W/W | 4.44/ 4.83 | 4.67/5.57 | 3.93/5.31 | 3.98/5.38 | ||
| Heating Capacity Min./Max | A7/W45 | kW | 2.42/6.57 | 3.00/9.09 | 4.38/11.7 | 6.17/15.5 | |
| Heating Power Input Min./Max. | kW | 0.67/1.82 | 0.86/2.40 | 1.11/3.55 | 1.58/4.76 | ||
| C.O.P | W/W | 3.62 / 3.86 | 3.51/4.03 | 3.28/3.94 | 3.26/3.90 | ||
| Nominal cooling | Cooling Capacity Min./Max | A35/W18 | kW | 2.02/5.43 | 2.39/7.83 | 3.47/10.1 | 5.77/12.4 |
| Cooling Power Input Min./Max. | kW | 0.51/1.31 | 0.57/2.08 | 0.94/2.97 | 1.23/3.70 | ||
| E.E.R | W/W | 4.00/4.23 | 3.77/4.35 | 3.40/3.93 | 3.36/4.69 | ||
| Cooling Capacity Min./Max | A35/W7 | kW | 1.27/3.71 | 1.83/5.61 | 2.16/7.19 | 4.05/10.1 | |
| Cooling Power Input Min./Max. | kW | 0.52/1.30 | 0.62/2.00 | 0.97/2.76 | 1.26/3.55 | ||
| E.E.R | W/W | 2.46/2.95 | 2.46/2.99 | 2.23/2.64 | 2.84/3.22 | ||
| General Info | |||||||
| Electrical data | Power supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | |
| Operation limits | Ambient Temperature Range | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | |
| Water temperature range(heating) | ℃ | 70/25 | 70/25 | 70/25 | 70/25 | ||
| Water temperature range(cooling) | ℃ | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | ||
| Refrigerant side | Refrigerant | Type / Amount | - / kg | R290 / 0.6kg | R290 / 0.7kg | R290 / 0.9kg | R290 / 1.5kg |
| Compressor | Type - Quantity/System | Rotary | Rotary | Rotary | Rotary | ||
| Four-way valve + EEV | sanhua | sanhua | sanhua | sanhua | |||
| Fan | Quantity | 1 | 1 | 1 | 2 | ||
| Airflow | m3/h | 3150 | 3150 | 3300 | 6300 | ||
| Rated power | W | 62 | 62 | 62 | 124 | ||
| Water Side | Type | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | ||
| Water Pressure Drop | kPa | 23 | 23 | 23 | 23 | ||
| Piping Connection | Inch | G1" | G1" | G1" | G1-1/4" | ||
| Allowable Water Flow-Min./Rated./Max. | L/S | 0.20/0.29/0.37 | 0.27/0.38/0.50 | 0.40/0.57/0.75 | 0.50/0.72/0.93 | ||
| Dimension | Net Dimension(L×D×H) | Indoor Unit | mm | 450x380x132 | 450x380x132 | 450x380x132 | 450x380x132 |
| Outdoor Unit | mm | 1255x460x860 | 1255x460x860 | 1255x460x960 | 1140x453x1465 | ||
| Net Weight | Indoor Unit | kg | 9 | 9 | 9 | 9 | |
| Outdoor Unit | kg | 97 | 105 | 117 | 152 | ||
